The 74HC86 is a high-speed CMOS logic IC that contains four independent 2-input Exclusive-OR (EXOR) gates. It is commonly used in digital circuits where logic functions like parity checking, binary addition, and signal modulation are required. The IC is designed for a wide range of digital applications and is available in a SOIC-14 SMD package, making it ideal for compact and space-constrained designs.
Features
- Quad 2-Input EXOR Gates: Contains four independent EXOR gates, each with two inputs, allowing for multiple logic operations in a single IC.
- High-Speed Operation: Designed for high-speed logic operations, making it suitable for fast digital circuits.
- Low Power Consumption: Features low power consumption, which is typical of CMOS technology, making it efficient for battery-operated devices.
- Wide Operating Voltage Range: Operates over a wide voltage range from 2V to 6V, providing flexibility in different digital circuit designs.
- SOIC-14 SMD Package: Compact surface-mount package for easy integration into high-density PCB designs.
Specifications
- Supply Voltage: 2V to 6V
- Input Voltage: 0V to Vcc
- Output Voltage: 0V to Vcc
- Maximum Propagation Delay: 13 ns typical at Vcc = 5V
- Low Input Current: 1 µA maximum
- Operating Temperature: -40°C to 85°C
- Package Type: SOIC-14 (Small Outline Integrated Circuit)
- Pin Count: 14

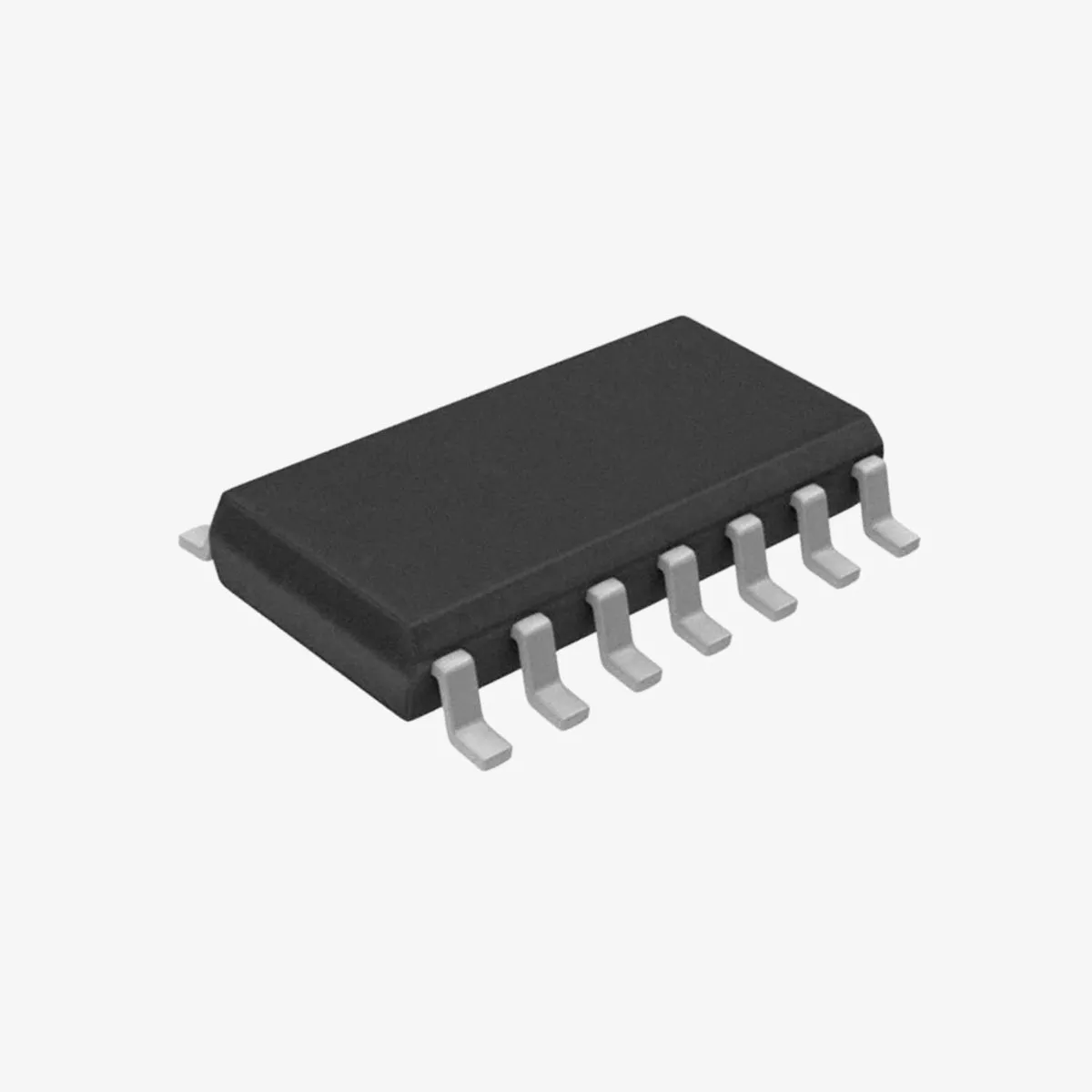

Note: Product images are for illustrative purposes only and may differ from the actual product.
